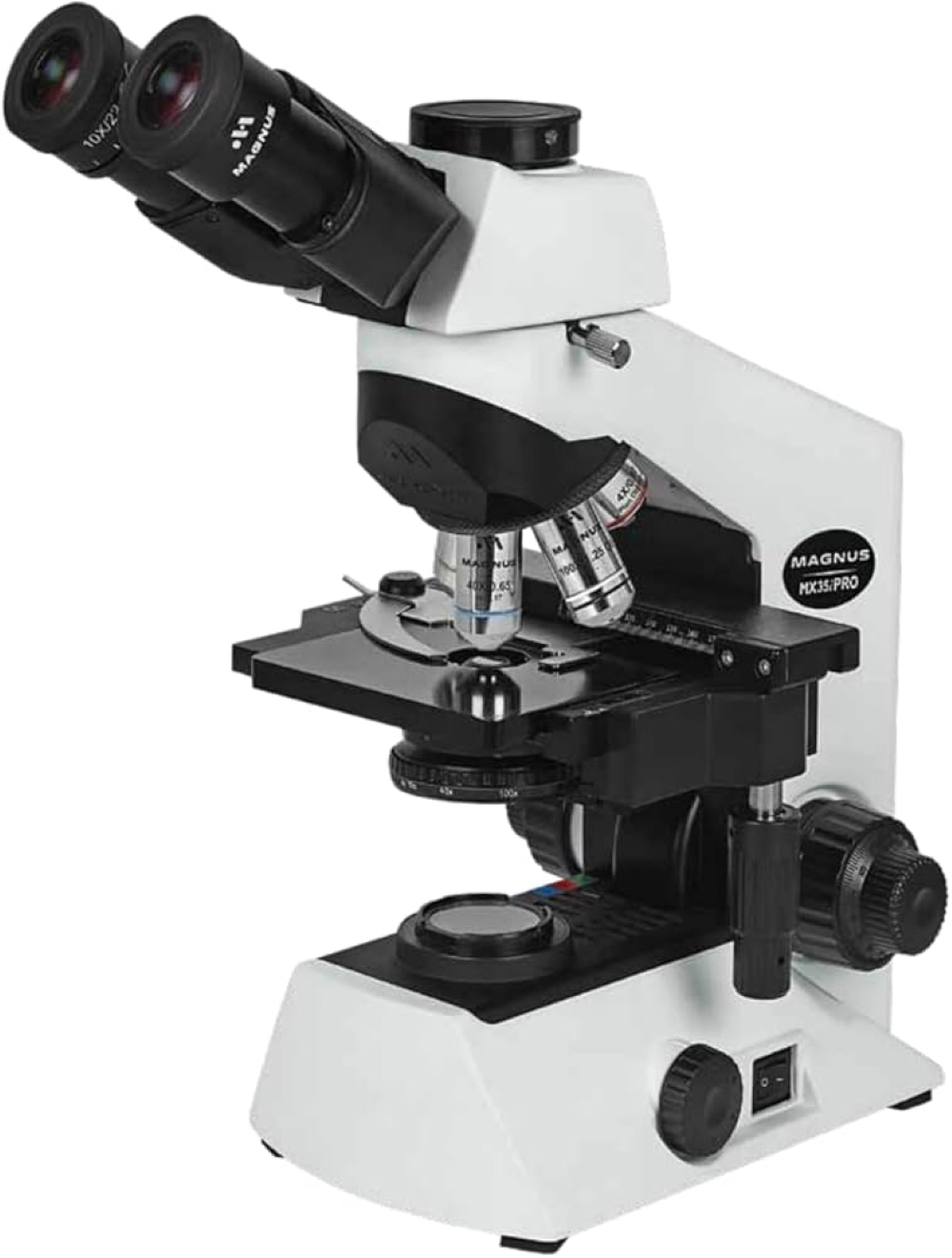

MAGNUS TRINOCULAR MICROSCOPE MODEL : MX-35i PRO WITH INWARD TILT QUINTUPLE NOSEPIECE

MAGNUS TRINOCULAR MICROSCOPE MODEL : MX-35i PRO WITH INWARD TILT QUINTUPLE NOSEPIECE

Magnus MX35i Pro LED Trinocular Microscope. Key specifications: Illumination: 3 W LED; stated LED life 30,000 h; Optical system: UIS2 infinity-corrected plan optics; Camera/eyepiece light path: Fixed 70:30.

Website item code: JSI-WEB-000361
₹ 105318.00 ₹ 87163.00 Save ₹ 18155

Price includes 18% GST.

Quantity:
Product Description:

MAGNUS TRINOCULAR MICROSCOPE MODEL : MX-35i PRO WITH INWARD TILT QUINTUPLE NOSEPIECE

Magnus MX35i Pro LED Trinocular Microscope. Key specifications: Illumination: 3 W LED; stated LED life 30,000 h; Optical system: UIS2 infinity-corrected plan optics; Camera/eyepiece light path: Fixed 70:30.

Key features

  • Trinocular observation tube with adjustable eyepoint height and fixed 70:30 light path.
  • Five Plan Achromat objectives and a 3 W LED illuminator.
  • Li-ion rechargeable battery backup with automatic LED-off after 30 minutes without intensity-control input.
  • Rackless low-drive mechanical stage with single slide holder.

Technical specifications

Optical systemUIS2 infinity-corrected plan optics
Viewing headSiedentopf trinocular observation tube, eyepoint-height adjustable, 30° inclined and 360° rotatable; interpupillary adjustment 48–75 mm
Camera/eyepiece light pathFixed 70:30
EyepiecesPaired 10× eyepieces, FN 22 mm; one with diopter adjustment and one fixed type
NosepieceInward revolving quintuple nosepiece, precision ball-bearing mechanism with positive click stop
ObjectivesPlan Achromat: 4× (NA 0.10, WD 18.5 mm), 10× (NA 0.25, WD 10.6 mm), 20× (NA 0.45, WD 1.67 mm), 40× spring-loaded (NA 0.65, WD 0.60 mm), 100× spring-loaded oil (NA 1.25, WD 0.13 mm)
StageCo-axial low-drive mechanical rackless stage, 125 × 145 mm; traverse 76 × 30 mm; single slide holder; side flap for safety
CondenserPre-centred Abbe condenser, NA 1.25, aperture iris diaphragm with markings for 4×, 10×, 20×, 40× and 100×
FocusingCo-axial coarse and fine controls; coarse focus range 20 mm; fine focus rotation 0.3 mm
Illumination3 W LED; stated LED life 30,000 h
Battery backupRechargeable Li-ion battery, approximately 4–5 h
Automatic shutoffLED auto-off activates after 30 min when the intensity controller is not touched
Power adapter12 V adapter, standard
LED status indicatorsRed: charging; green: running on battery; blue: charge needed
BodyAluminium die-cast body; critical movements use ball bearings and wire guides
Condenser holderRack-and-pinion mounted
Supplied storage featureCord hanger / basket for DC adapter and power cord

For shipping, returns and model-specific warranty details, please request a quotation or contact us before ordering.
